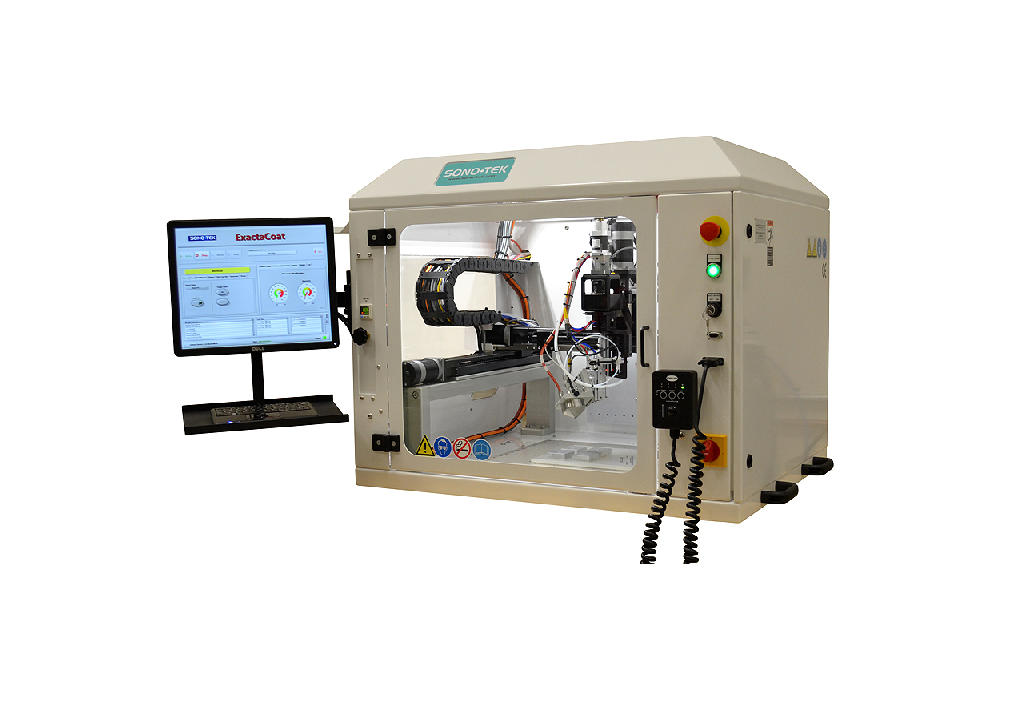

Elevate your spray coating applications with the SonoTek ExactaCoat Programmable Benchtop Coating System, a fully-enclosed programmable 3-axis robot designed for optimal precision and efficiency. Ideal for R&D enterprises, laboratories, and low-volume production, this coating system offers flexibility, easily configured to meet your specific application needs.
SonoTek ExactaCoat Programmable Benchtop Coating System Key Features:
- Robust Construction: The SonoTek ExactaCoat Programmable Benchtop Coating System features a fully-enclosed design, employing robust ball-screw slides driven by brushless DC servo motors. Easily integrate Sono-Tek ultrasonic nozzles for enhanced performance.
- Customisable Spray Patterns: Tailor spray patterns to your specific application with ease. The system accommodates a variety of Sono-Tek ultrasonic nozzles, allowing for spray pattern widths ranging from 0.08 – 6” (2 – 153 mm).
- Integrated Features:
- Compact benchtop design for portability.
- Generous 400 mm x 400 mm x 100 mm (15.75” x 15.75” x 3.94”) range of motion.
- Windows®-based programming software with image import (PC included).
- Coordinated motion in all three axes simultaneously.
- Remote trackball teach pendant.
Sono-Tek Ultrasonic Nozzles Feature:
- Up to 80% reduction in material consumption.
- Reduced overspray and atmospheric contamination.
- Non-clogging design for minimal servicing and downtime.
- Precision and repeatable spray patterns.
- Corrosion-resistant titanium and stainless steel construction.
Optional Equipment:
- Heat Plate, Vacuum Plate, or Combined Heat/Vacuum Plate.
- Ultrasonic Dispersion Pump for even suspension dispersion.
- MicroFlow Recirculation Pump for precise dispense at low flow rates.
- Camera – Passive Vision.
- Laser Pointer.
- Low oxygen atmosphere with monitoring.
Specifications:
- Work Area: 400 x 400 x 100 mm (15.75 x 15.75 x 3.94 in).
- Repeatability: 0.025 mm (0.001 in).
- Resolution: 0.015 mm (0.0006 in).
- Motor: Brushless DC servo.
- Drive Mechanism: Ball screw drive.
- Work Payload: 11.4 kg (25 lbs.).
- Inputs/Outputs: 52.
- Software Control: Windows®-based (PC included).
- Power: 120V, 220V, +/- 10%, 50-60Hz.
- Air: 80 PSI dry unlubricated air.
- Certification: CE certified.
Options:
- Heat plate temperature up to 150°C.
- Vacuum plate with 4 user-controlled zones.
- Adjustable Camera (Passive Vision) viewing area.
- Laser Pointer.
- Inert atmosphere with monitoring.
Dimensions: 37.2” W x 31.2” H x 32.7” D (944 mm W x 831 mm H x 794 mm D).
Sono-Tek Ultrasonic Nozzles Variety:
- AccuMist™ Nozzle: Creates a narrow, bow-shaped spray pattern.
- Vortex Nozzle: Produces a wide, conical spray pattern.
- MicroMist™ Nozzle: Creates a very narrow, cylindrical spray pattern.
- Impact Nozzle: Generates a wide, fan-shaped spray pattern.
Versatile Applications: Most commonly used with a Sono-Tek syringe pump for precision, low-flow applications, the ExactaCoat is an extremely flexible tool ideal for R&D or low-volume production.
Enhance your coating precision and efficiency with the SonoTek ExactaCoat Programmable Benchtop Coating System. Unleash the power of customization for your unique application needs.
